tubular manifold

[Fusion Ed]

And totally choked the top end. Was no more capable than a 3071.



[Noz]

And totally choked the top end. Was no more capable than a 3071.

That's not good. Was it a Protech one?



[Fusion Ed]

No idea.



[RO_SUNNY]

So...until now everybody was intersted .....and now nobody!

No problemo.......

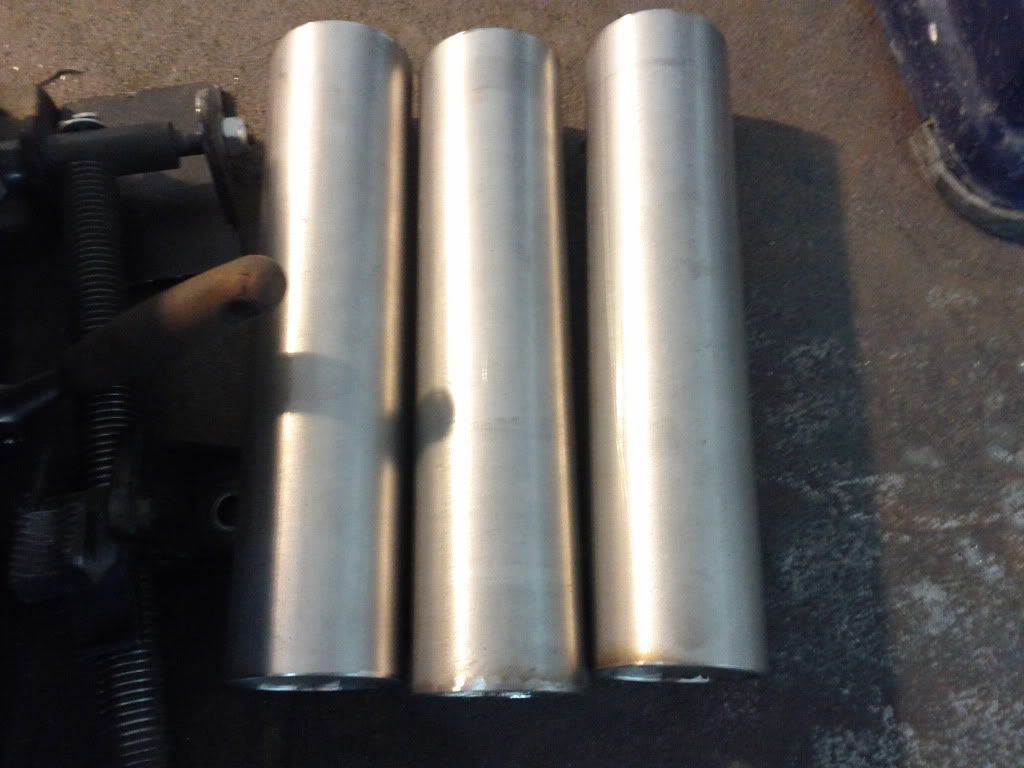

I will start making a manifold with equal length pipe 48mm in diameter and a 3 mm wall from some 316 stainless.

And........after that is somebody will be interested I will advertise it



[Noz]

Can't justify a top-mount, and if a log mani struggles as Ed says, I'll be sticking with the stock item and Making It Work :-D



[Fusion Ed]

So...until now everybody was intersted .....and now nobody!

No problemo.......

I will start making a manifold with equal length pipe 48mm in diameter and a 3 mm wall from some 316 stainless.

And........after that is somebody will be interested I will advertise it

Do it. People are always more interested once something has been done and it can be seen.



[johnny gtir]

So...until now everybody was intersted .....and now nobody!

No problemo.......

I will start making a manifold with equal length pipe 48mm in diameter and a 3 mm wall from some 316 stainless.

And........after that is somebody will be interested I will advertise it

i will put one through it paces you never replied to my question and i have been looking could not see standard position how much ?



[RO_SUNNY]

And so it begins.......

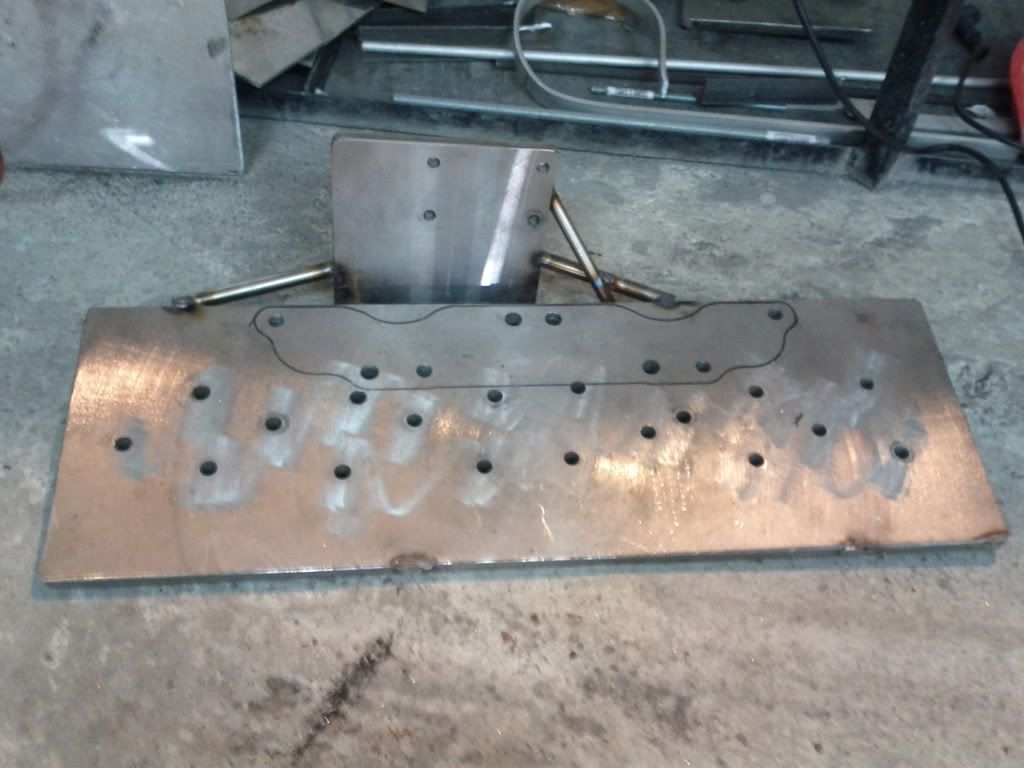

I have made the jig (just the important part of it...the part that retains the standard position of the turbo)

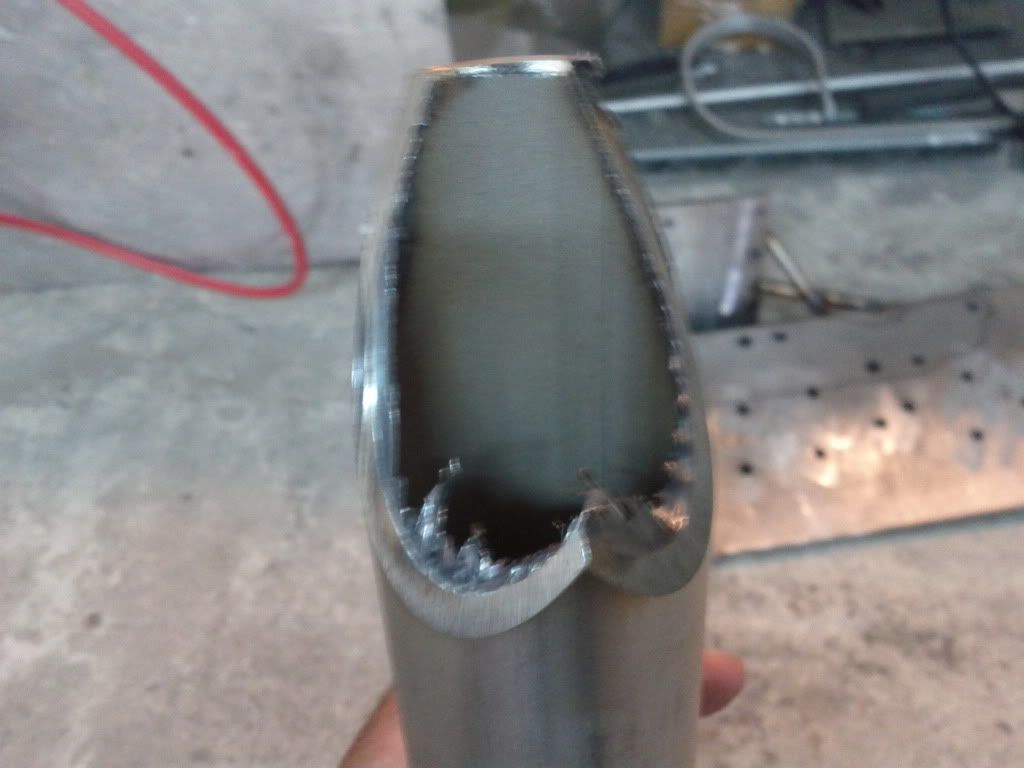

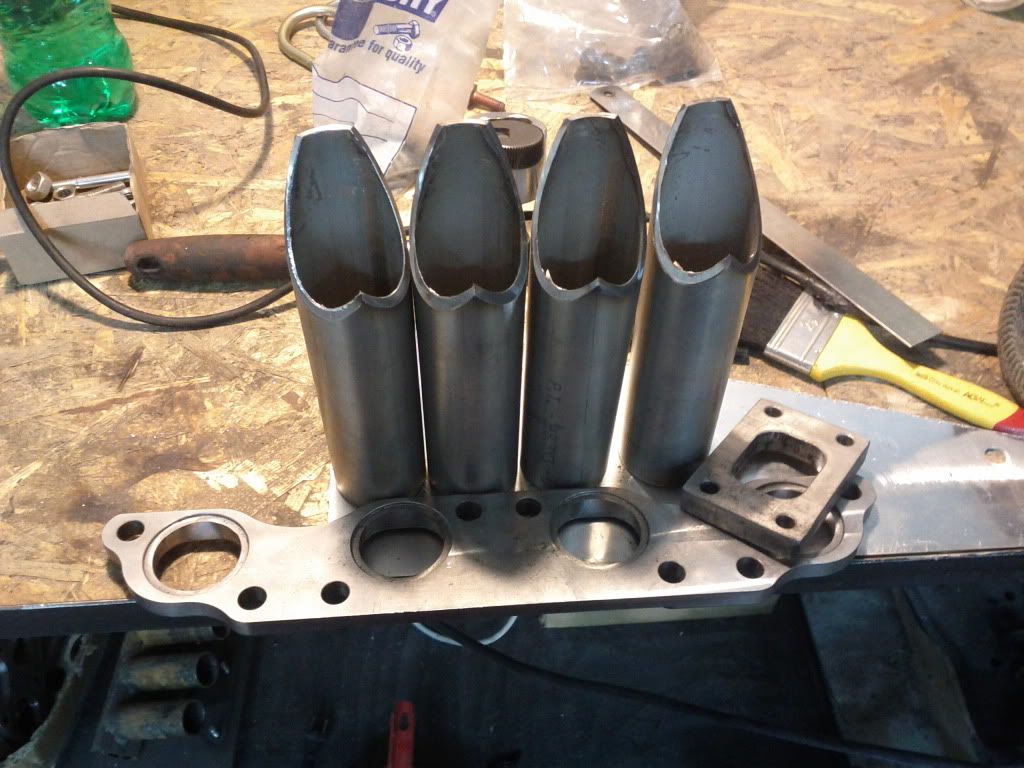

The collectors are prefectly merged so that gases can flow free and equally through the turbo



[campbellju]

Looking good already!



[RO_SUNNY]

Thanks for the appreciation Jim!



[johnny gtir]

what are your thoughts on the mounting holes.some say round some oval othes say slashed.one of dp desing was seperate flanges over one main one ?



[RO_SUNNY]

I really don't understand your question.

Don't be upset but could you please rephrase the question.....I wuold be glad to answer every question without any problems.



[STU666V]

Looking good so far.



[johnny gtir]

Looking good by the way. The flange that bolts to the block. Most people say the thicker the better. The holes in the flange can be round.oval holes .Round with a single slash hole imagine a should i say normal flange and where the holes are that the studs come through putting a slit in with a angle grinder blade from outside into middle of hole only. I have no pic but dp done a manifold that instead of one big flange it was four individual two hole ones if that makes sense



[warpspeed]

not much....lol



[red reading]

Is that oval to round transition in the flange or are the flange holes round on both sides?



[RO_SUNNY]

Oval to round transition.....in order to "accomodate" an 48 mm pipe on the manifold side

Also the flange is cnc machined and has an anti warping flat surface on the gasket side.

I will post some pictures on monday to explain it better!



[RO_SUNNY]

Oval to round transition.....in order to "accomodate" an 48 mm pipe on the manifold side

Also the flange is cnc machined and has an anti warping flat surface on the gasket side.

I will post some pictures on monday to explain it better!
