i need something that shows this installation a little better then the hiteq one in the how to guide because i went to install my walbro tonight and i cant get it to work at all it doesnt fit in the carrier the strainer doesnt seem right i just need help someone please help me
HELP!!!!!!!!!Walbro Fuel Pump Installation
- Thread starter 91_GTi-R
- Start date
marcymarc
Active Member
The walbro is really small, you should of got some foam sheet kinda stuff with your walbro??? this is to wrap round the pump so it will fit in the oe carrier, you will have to tie wrap the whole thing in place
also make sure you use the oe pickup not the one that came with the wabro, it doesnt sit low enough in the tank and causes fuel surge.
also make sure you use the oe pickup not the one that came with the wabro, it doesnt sit low enough in the tank and causes fuel surge.
jambo_gtir
Member
mine is wired up to a button in the car, is this ok? just means that it's always pumping away unlike the stanard one that runs off ECU?
what !!!jambo_gtir said:
so as long as the ignition is on it pumps ??
Basically, when you buy a walbro pump which it specifically for the pulsar it should come with a neoprene sleeve which fits round the body of the walbro pump this then fits into the plastic cradle the standard pump was fitted into and then a couple of cable ties round the whole thing to keep it all together should do the trick.91_GTi-R said:
When you removed the standard pump it should have been fitted with a long filter sock, remove this from the standard pump and fit it to the new walbro at the same sort of orientation so when the new pump is fitted in the tank the sock reahes the bottom of the tank.
jambo_gtir
Member
Yer, even when i turn ignition off as long as button is still pressed in, it keeps pumping lolstevepudney said:
you must be bloody mad :der:
I'm not sure but I think that actually might be illegal ???
have you thought about what would happen if you were in a bad accident.............
Just take a minute to think what would happen if you had an accident that trapped you or a passenger in the car and a fuel line was punctured or ripped off..................pissing fuel + hot engine/turbo = perfect ingredients for a car fire...............brilliant :der:
I'm not sure but I think that actually might be illegal ???
have you thought about what would happen if you were in a bad accident.............
Just take a minute to think what would happen if you had an accident that trapped you or a passenger in the car and a fuel line was punctured or ripped off..................pissing fuel + hot engine/turbo = perfect ingredients for a car fire...............brilliant :der:
P
pulsarboby
Guest
yes thats not really a clever move:doh:
Braveheart
New Member
what was the fix....?
a bucket of water and a bag of sand?
a bucket of water and a bag of sand?
EssexAaron
Member
i agree with the mad part about the fuel pump being on a switch, but you can pour petrol on a red hot turbo manifold and it wont catch alight, trust me ive tested it, oil on the other hand goes up much more quickly!:-Dstevepudney said:
EssexAaron
Member
back to the orginal post

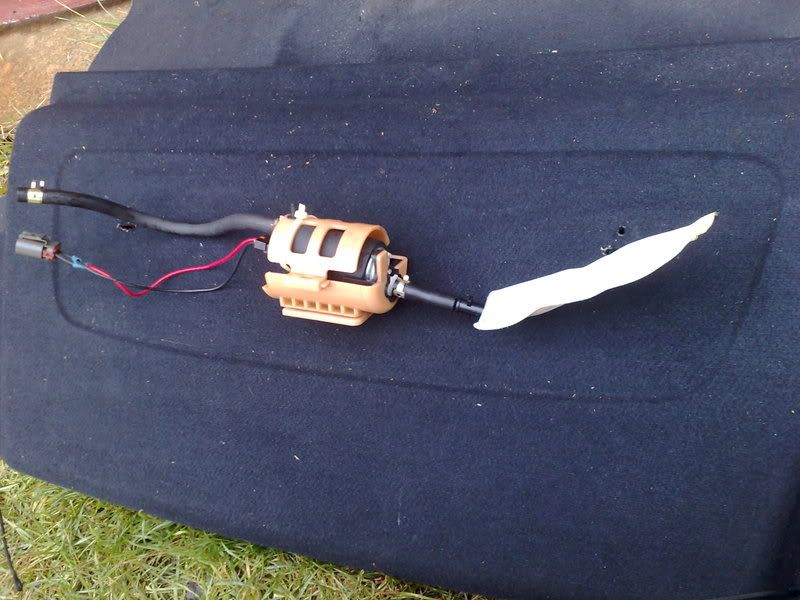

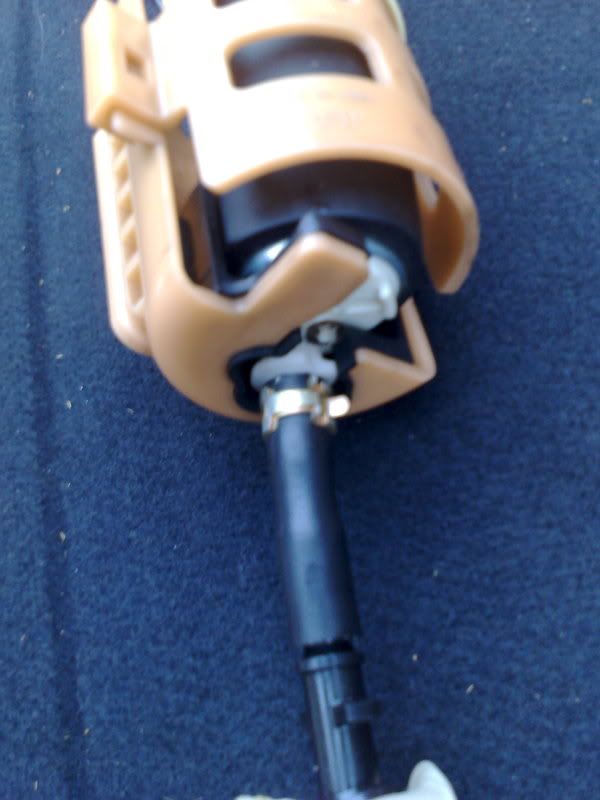

this is how the pump should look fitted in the sleve

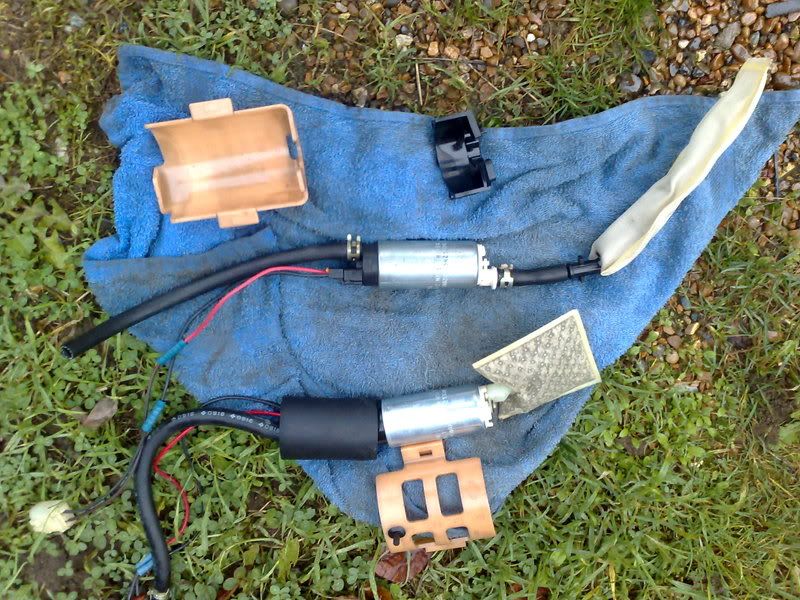

this is the difference between the walbro filter and changing to a standard R filter

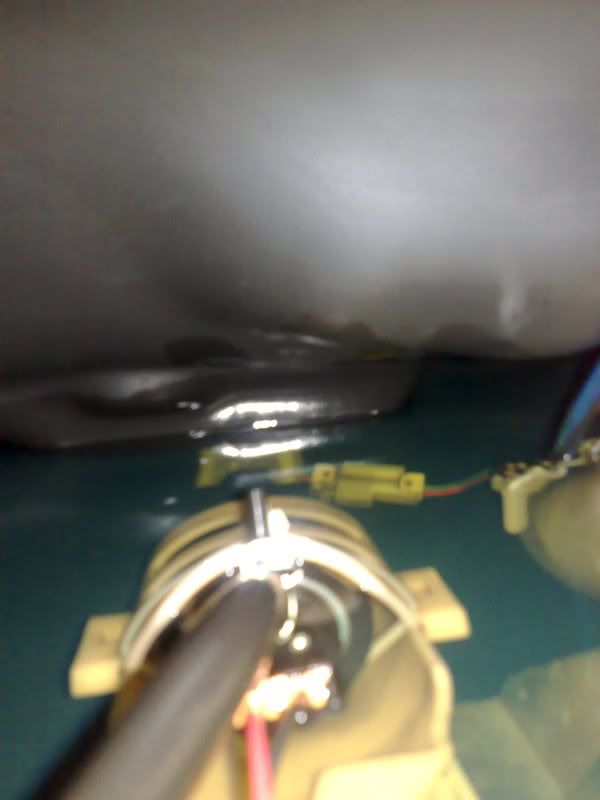

this is in tank with the walbro filter

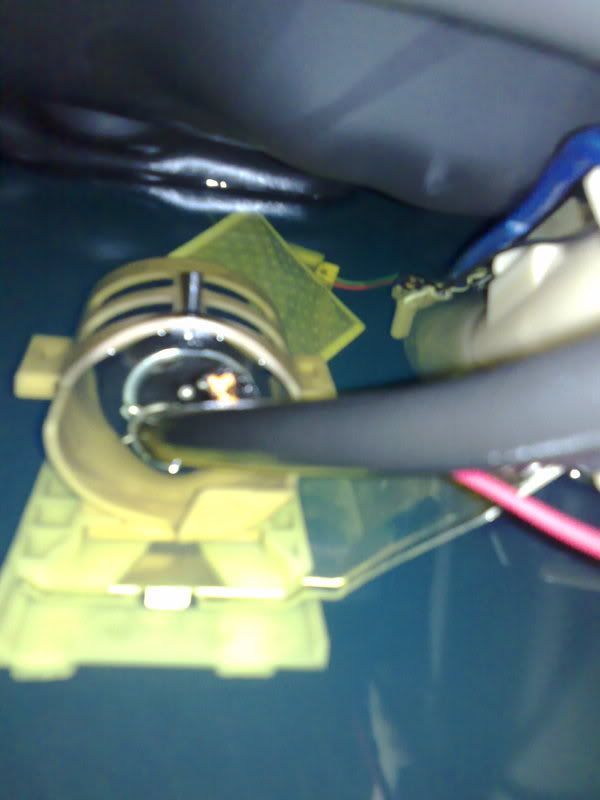

this is intank with the standard gtiR filter (the one you should be using!) notice how much further it sits down into the reserve tank and flat on the bottom of the tank.
Hope this Helps
this is how the pump should look fitted in the sleve
this is the difference between the walbro filter and changing to a standard R filter
this is in tank with the walbro filter
this is intank with the standard gtiR filter (the one you should be using!) notice how much further it sits down into the reserve tank and flat on the bottom of the tank.
Hope this Helps
You know what I mean though, it's madness :der:EssexAaron said:
Good post with the pics Aaron
jambo_gtir
Member
i bought the car like that though, i just thought it was supposed 2 be like that, but cheers for letting me know. I mite get that sorted soon.
EssexAaron
Member
yer definatly, no idea why you'd want to do it, maybe its race or something:lol:stevepudney said:
cheers mate
