Turbo Manifold pictures!

[RO_SUNNY]

Ok Chaps,

I will start making a manifold for my R.

My idea is to make an sidewinder like Lovefab use to do ......

Please post pictures of Sidewinder Manifolds so that I can inspire myself.

Thanks,
B



[campbellju]

Sorry no photos to add but I always enjoy your build threads 8)



[Makaveli_se7en]

Not got any photos but turbine tech also do a side winder which you could look at.



[RO_SUNNY]

Cheers Jimbo.....Cheera makaveli

Stay tuned....something really nice will come soon (a new style of manifold with a brand new idea)



[RO_SUNNY]

No pics?

No one?



[red reading]

Ask rob " vpulsar " he has pics of a side mount manifold...ps ed at fusion has been trying to get you to make him a manifold etc



[grim_d]

Google images



[vpulsar]

I'll post some pictures of my old one later mate, I'm at swimming club with my daughter at the moment.



[RO_SUNNY]

Please do Vpulsar!

I Know Danny...but it hasn't been so good for the shop lately



[vpulsar]

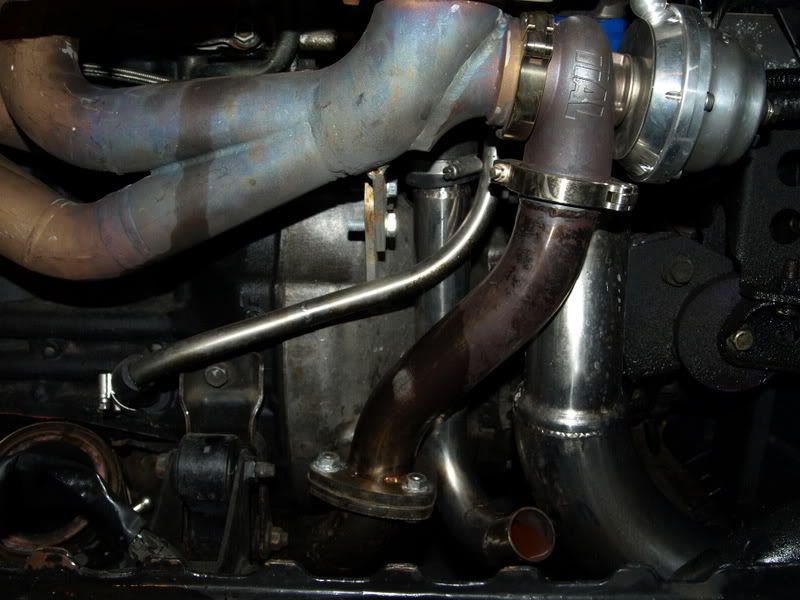

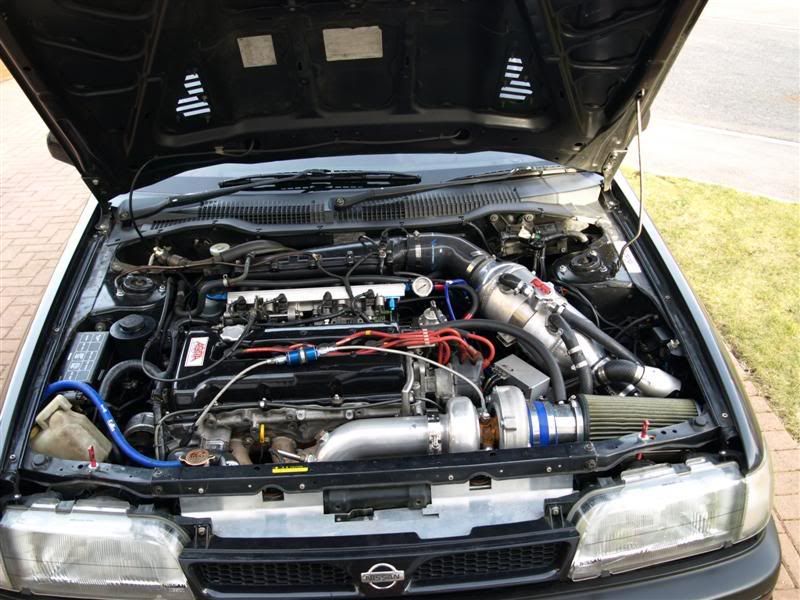

Here you go mate a couple of my old set up.



Rob



[Fast Guy]

Rob, did it have any bracing to the engine or gearbox? I'm just thinking it's a long way over holding all that weight on a very hot manifold. Was wondering if it could sag at all?



[shroom]

Chocolate Mini bites in the garage you were a porker



[vpulsar]

Rob, did it have any bracing to the engine or gearbox? I'm just thinking it's a long way over holding all that weight on a very hot manifold. Was wondering if it could sag at all?

Yes the bracket mounts to the gearbox/engine bolts and is out of site I'll find another picture for you in a moment once I fire up the laptop.



[vpulsar]

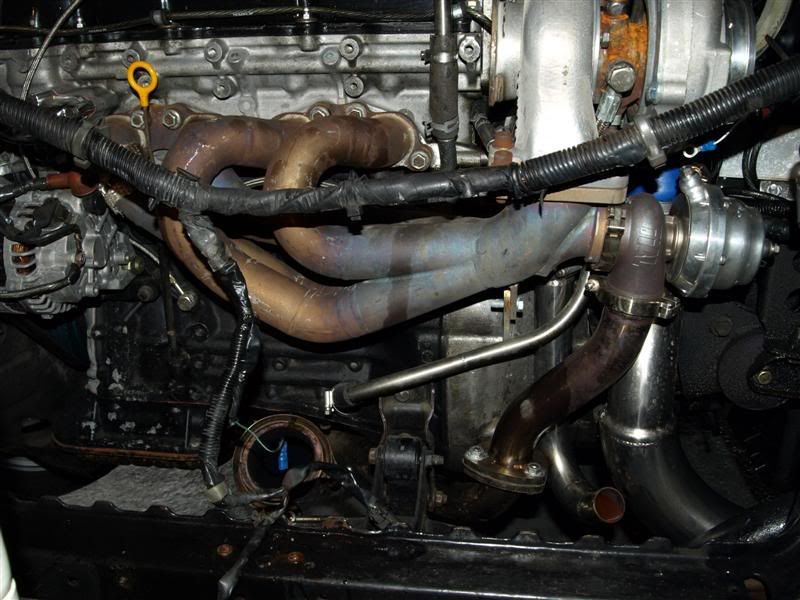

Here you go buddy.





Rob



[RO_SUNNY]

Very nice Rob.

But what about intercooler piping and routing of such?



[STU666V]

Couple for you.



[vpulsar]

Very nice Rob.

But what about intercooler piping and routing of such?

In my case no intercooler mate.



[RO_SUNNY]

I was thinking about the water to air intercooler.

But will it be good for road / track use?

Is it better that the classic air to air?

Please feel free to discuss)



[RO_SUNNY]

Thanks Stu....anymore of that sidewinder?



[vpulsar]

Thanks Stu....anymore of that sidewinder?

It was fine for a road car and allowed me to keep the car looking very standard, But If I used full boost it would start to knock back the ignition after about 30 seconds so I never used it on track with the charge cooler, I would think it would of coped better with less boost and a proper water reservoir fitted, Now days I think the simplicity of a air to air cooler is the best option, I've fitted an uprated top mount of my new one just to keep it looking box standard.
