Hi all,

Not sure if this would be any use to people, but I've found a few diagrams online for turbo flanges, both inlet and outlet. Please let me know if I've wrongly labelled one and I'll modify the text!

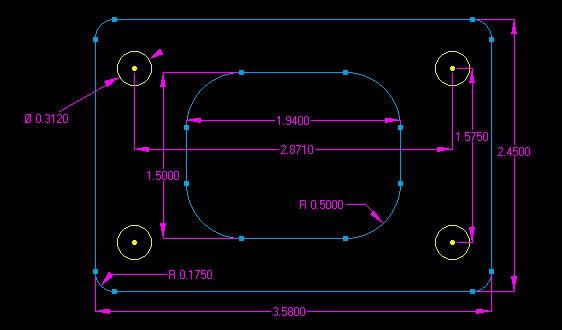

Standard T28 inlet:

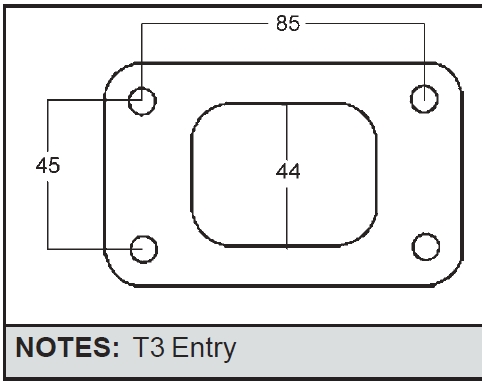

T3 inlet flange:

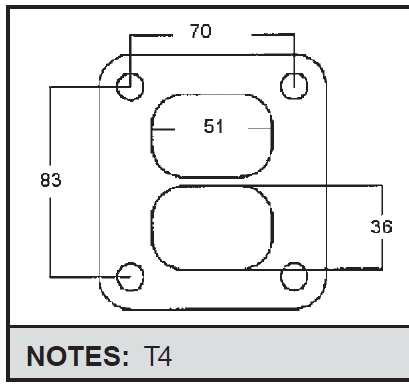

T4 inlet flange:





Standard GTi-R outlet (is this a 5-bolt GT flange????):

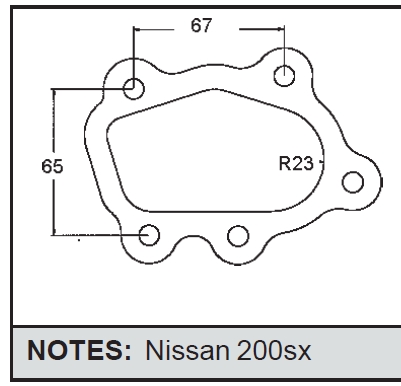

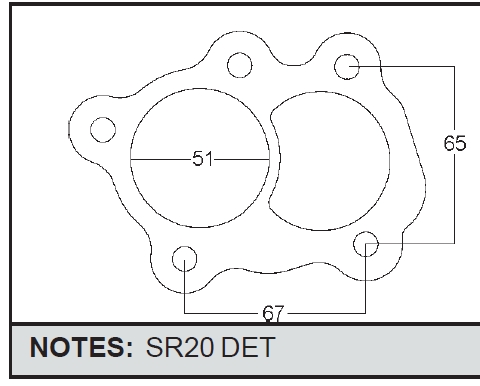

Standard 200sx flange (upside-down SR20DET above???):




Not sure if any of this would be useful, particularly since only the top image shows all the necessary measurements, but thought it might be good for someone wanting a little info in pictorial form!

Thanks!
Dave

watoga

watoga

Member
PobodY said:
Is that first one in inches, and the rest in mm?
Click to expand...
Yep, the first one is in inches, while the rest are in mm.

tomgtiR said:
where they from im after the evo flanges
Click to expand...
I got them from a flange-adaptor maker. I just made JPEGs out of the PDF file supplied so I could post them on here. There were definitely Evo flanges in there, so I'll post a link to the PDF file once I get it uploaded.

Cheers,
Dave
