Can someone measure something for me ? ( electronics )

[AJ4]

Can someone measure a standard maf and tell me what the impedance is of the signal pin with the ignition off ? and also what the impedance is on the plug side ( the ecu impedance ).

Cheers, haven't got a maf handy at the moment.



[oldaneal]

which pins mate im bored and can have a look ?



[AJ4]

I'm pretty sure its one of the outer pins, I think the wire is orange ( not orange/blue, just orange )



[Dooie Pop Pop]

ready and waiting for instruction lol

:-D :-D :-D



[AJ4]

lol 8)

Put the black lead on earth and the red lead on the signal wire and measure the resistance

I also need the resistance of the 'loom' ( ecu ) but that would involve unplugging your current afm and you've went to a lot of trouble already

Cheers Stu



[Dooie Pop Pop]

:doh: :doh: :doh: and quadruple :doh:

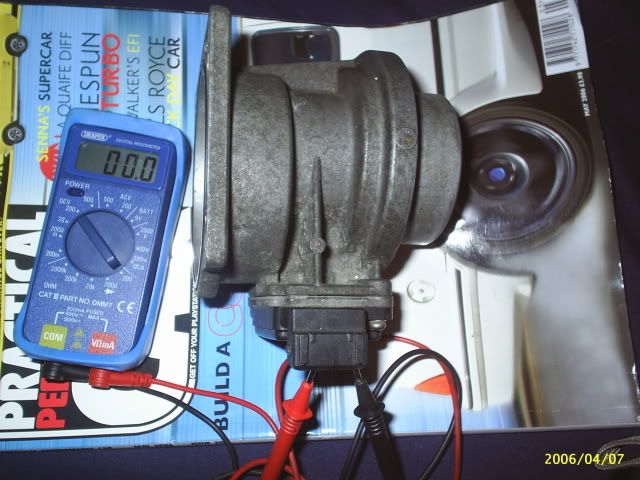

ok fella...as per my pm:lol: we have pins B, C and D thats left to right:-D and what unit do i measure the resistance with?

i can do DCV, ACV, DCA, OHM AND BATT 9V... i' ll assume smallest unit of measurement.

sorry mate its dark and iv just got home from work

iv got two standard mafs...i' ll post both the buggers to you if needed:lol:

sorry to mess you around but i could only get a reading with DCV @ 200m and 200 ohm' s and its not in the slightest bit consistent either

i could meet you half way lol.



[campbellju]

Ross, I'll have a go at this tonight as I am now thinking the PFC problem is MAF related in some way shape or form.

I'll do it for a Z32 MAF too as that is what I will be running.

Jim



[AJ4]

Cheers Jim, by the time Dooie works out how to switch his meter on I'll be home and able to measure it myself :lol: P.s Stu, do I still get to bang your missus ??

I'm not sure what the pin allocations are for a standard MAF ( B,C, D etc ). I'll do a sticky soon with the pinouts for the standard and the Z32 and Q45 along with typical resistance values of the AFM & loom, so people can use it to check if theirs is duff.

From what I can remember Stu, there is a white, orange and orange/blue wire. I need the resistance measured between the white and the orange wires ( Ohms range on the meter ). As above, I'm not sure what letters they correspond to on the connector but I'm sure the white one ( earth ) is the centre one so that will be 'C' ?
No problem if no-one can do it, I'll be home on Friday night anyway.

Cheers,

Ross.



[Tony-turbo]

Can someone measure (Length/Diameter) the follow parts seeing as you have maf's to hand

Mucho Thanks

Tony.



[Tony-turbo]

http://img.cx/d/6731573/IMG.CX-4017029.JPG



[campbellju]

I can have a go at that tonight. My only reservation would be using mine in a sticky without confirmation as I am the one with a PFC ccompatibility issue ;-)



[Dooie Pop Pop]

Ross: 03.8 on one maf and 03.9 on the other, measured using the 200k unit thingy. if you had said ohms in the first place and yup you guessed it im not trained in the black arts of the multimeter at least i bothered to try and help you out....you' ll get to drive my R before you get to shag my missus btw

TonyTurbo: a=90mm, b=100mm and c 'inlet'=about 78mm

the outlet of a standard maf(opposite side) is 60mm;-)

HOPE this helps lol



[Tony-turbo]

Dooie pop pop, your a legend, Cheers Matey!

T.



[AJ4]

Cheers Stu 8)

you' ll get to drive my R before you get to shag my missus btw

Excellent, tell her to drive it down to mine and kill two birds with one stone



[Dooie Pop Pop]

Cheers Stu 8)



Excellent, tell her to drive it down to mine and kill two birds with one stone

LOL! whats wrong with your missus then?:lol: last time i saw her she seemed really enthusiastic to please:? :-D



[AJ4]

14 weeks preggers at the mo, and I have some bizarre morbid fear of my **** getting grabbed by a tiny hand... ( not unless its attached to a child already outside the womb )



[Dooie Pop Pop]

14 weeks preggers at the mo, and I have some bizarre morbid fear of my **** getting grabbed by a tiny hand... ( not unless its attached to a child already outside the womb )

you know what? id worry about exactly the same thing:lol: dont deny her her needs though.....i didn' t;-) i have some ginger in me blood btw so if it comes out carrot:lol: you wont know the truth till he/she gets over 5ft5inch' s and then you' ll know for sure :lol:


hope it all goes well for you both my 4x4 whale tail driving mates is due Aug 28th...6 days early and iv got a nice birthday pressie8)

Stu
