3071 vs standard gearbox

M

MarkTurbo

Well-Known Member
Just thought i'd post the pictures of my gearbox now i've stripped it so people can see what they're letting themselves in for when they go sticking bigger turbo's on with a standard box ;-)

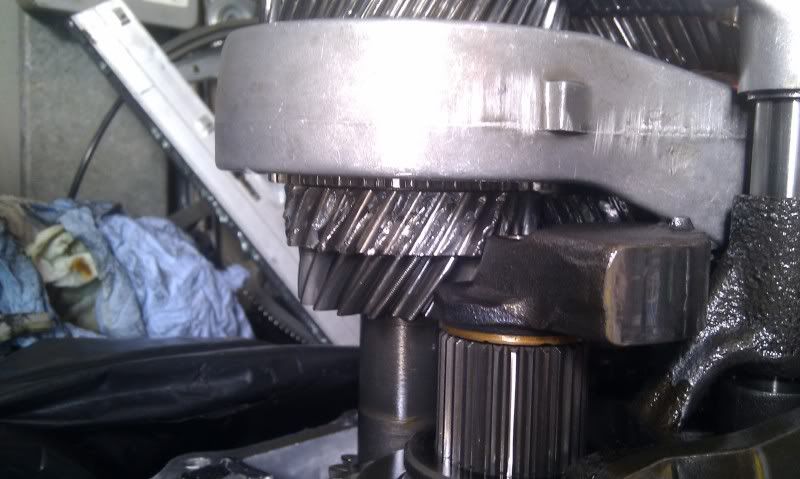

Nothing left on the mainshaft :lol:

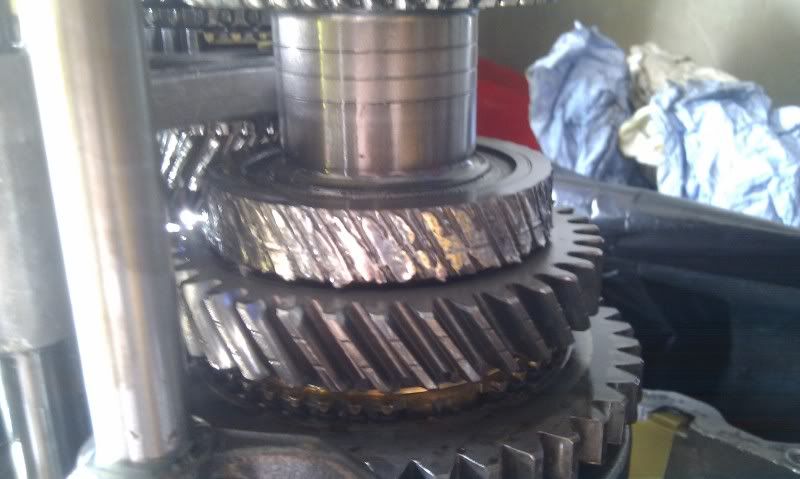

Still a few teeth left on the input shaft!

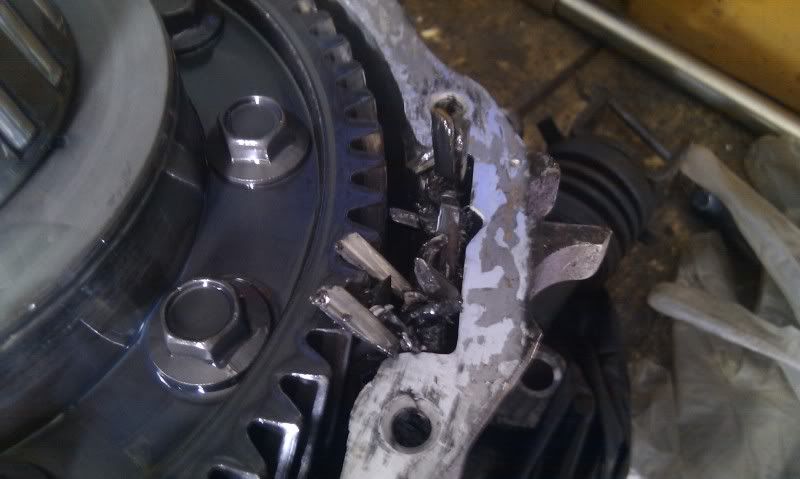

The magnet in the bottom of the box did its job and picked up virtually all the bits.


M

MarkTurbo

Well-Known Member
whytie said:
How many miles, track days, launches ect did it the box last with the turbo
Click to expand...
Probably just over 1000 miles, around 70+ launches, no track days but quite a few sprints & hillclimbs.

bensmith907 said:
Cool! Did the gearbox still work when you removed it?
Click to expand...
Yes, it just had an extra neutral :lol:

vmax85 said:
at wich level of power your gearbox has gone? pushed the 3071 to its limit?
Click to expand...
No, i've only ever run it upto 1.7 bar. I'll get round to trying 2 bar one day!

C

chrism

New Member
My gearbox apparantly did the same thing just before I bought it when Ashills had it. He put a quaife 3rd gear in and the others were treated by firing tiny ball bearings at them. Cant for the life of me remember what thats called in english. Anyone? The box has now held five years and about 30000km. Ive been running almost 2bar@3071. Its been launched a good few times.

M

MarkTurbo

Well-Known Member
You can see why they break when you look at the gears, 1st & 2nd look reasonably strong but 3rd, 4th, and 5th have pathetic little teeth on them. My Dad has got an old mini gearbox and i'd say some of the gears in that actually look stronger :lol:

PobodY

PobodY

Moderators
Staff member
I was looking at it, but Danny said it was more likely I just needed GL4 oil because it was likely someone had filled it with GL5 and the synchromesh can't keep up.
